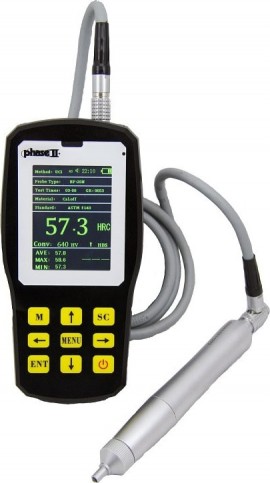

Phase II PHT-6011 UCI Portable Hardness Tester with Long 1 kgf Probe
Phase II PHT-6011 UCI portable hardness tester. Long 1 kgf probe for deep groove surfaces with Ra below 125 uin.
$9,714.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Portable hardness tester for large-mass items and for metals as thin as 0.0004 in (1 mm), at hardness values as low as 20 HRC (75 HB)
- Suited to deep groove surfaces with Ra below 125 uin
- Combines UCI and Leeb hardness testing in one device
- Tests steel with a minimum thickness of 0.08 in (2 mm) and unlimited maximum thickness
- Shows Rockwell, Brinell and Vickers conversions on the display
- Large memory with USB output
- Loading force: 1 kgf (10 N)
- Probe diameter: 0.87 in (22 mm); length 8.4 in (213 mm)
- Oscillating rod diameter: 0.09 in (2.4 mm)
- Surface roughness requirement: Ra < 3.2 um (Ra < 125 uin)
- Minimum sample weight: 0.66 lb (300 g)
- Minimum sample thickness: 2 mm
- In the box: tester, probe
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
