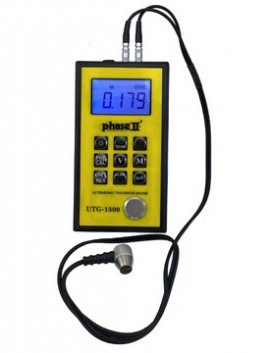

Phase II UTG-1500 Ultrasonic Wall Thickness Gauge
Phase II UTG-1500 ultrasonic wall thickness gauge. 0.04 to 8.0 in range in steel with 5 MHz dual sensor probe.
$642.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Lightweight ultrasonic thickness gauge for precise thickness measurement of raw materials, component parts and assembled machinery
- Rugged enough for harsh environments
- Microcomputer circuitry gives high accuracy and fast measurement with a wide range and high resolution
- Measures any material that conducts sound waves, provided the top and bottom surfaces are parallel
- Measuring range: 0.04 to 8.0 in in steel with standard probe
- Resolution: 0.001 in (0.01 mm)
- Accuracy: +/-(0.5% thickness + 0.001 in)
- Sound velocity range: 3280 to 32,805 ft/s (1000 to 9999 m/s)
- Display: 4-digit LCD with backlight; frequency 5 MHz; update rate 4 Hz
- Memory: 20 groups (100 files/group); no data output
- Operating temperature: 32 to 122 deg F
- Power: 2 x 3 V AA alkaline batteries; about 100 hours with backlight off
- Dimensions 5.90 x 2.91 x 1.30 in (150 x 74 x 33 mm); weight 8.6 oz (245 g)
- In the box: ultrasonic wall thickness gauge, 5 MHz dual sensor probe, couplant gel, batteries, certificate of calibration, carry case, manual
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
