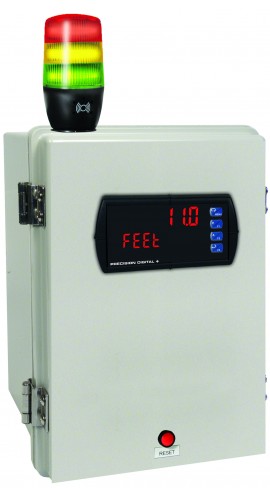

Precision Digital MOD-LH3LCB1-RYG Light/Horn Accessory for ProVu Meters

Specifications

• Light/horn accessory for ProVu meters with three separate color bands (red, yellow, green) and an 85 dB horn
• Light and horn can be controlled independently by up to eight relays on the ProVu meter; relays can be set for automatic or manual reset
• Horn can be silenced at any time; light stays on until the alarm clears
• Light can be wired to flash or stay steady on
• Holes drilled for light/horn and reset button in the enclosure
• Horn: 85 dB, 38 mA
• Light current: red 34 mA, green 29 mA, yellow 33 mA
• Power: no additional power when wired to a ProVu meter; 24 VDC when mounted remote
• Hole sizes: light/horn 0.875 in (22 mm); reset button 0.630 in (16 mm)
• Operating temperature: -40 to 104°F (-40 to 40°C)
• Cable length: 3.28 ft (1 m)

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
