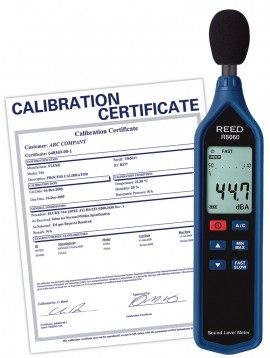

REED R8060-NIST sound level meter with bargraph, Type 2, 30 to 130 dB, with traceable calibration certificate
REED R8060-NIST Type 2 sound level meter. Triple-range 30 to 130 dB with analog bargraph and AC/DC output.
$544.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Triple-range sound level meter with a large LCD, on-screen digital analog bargraph and AC/DC output for chart recorders and dataloggers
- Supplied with a traceable calibration certificate with full data and uncertainties
- Meets IEC Type 2 requirements; over and under range indicators for each of the 3 ranges
- A and C frequency weighting; fast and slow time weighting; min/max hold
- Tripod mount for long-term monitoring; low battery indicator; auto shut-off
- Measuring ranges: 30 to 130 dB (low 30 to 90 dB, medium 50 to 110 dB, high 70 to 130 dB)
- Dynamic range: 60 dB in each range
- Accuracy: ±1.4 dB
- Resolution: digital 0.1 dB, analog 2 dB (30-segment bargraph)
- Frequency range: 20 Hz to 8 kHz
- Microphone: 0.5" (12.7 mm) electret condenser
- Certifications: CE, IEC 61672-1 Class 2
- Power: 9V battery, approx. 50 hours
- Dimensions: 10.2 x 2.2 x 1" (258 x 55 x 25 mm); weight 6.5 oz (185 g)
- In the box: sound level meter, traceable calibration certificate, windshield ball, hard carrying case, battery
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
