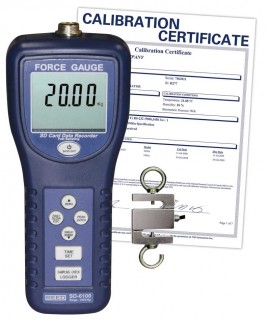

REED SD-6100-NIST data logging force gauge, 220 lbs (100 kg), with traceable calibration certificate
REED SD-6100-NIST data logging force gauge. Measures push and pull force up to 220 lbs with SD card datalogging.
$1,140.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Handheld digital force gauge that measures tension and compression (push and pull) forces
- Real-time datalogger with SD card slot (card optional, up to 16 GB, Class 4); records to a file that opens in Excel without software
- Reversible backlit display keeps readings legible in either test direction
- Compression test fixture required for push tests
- Peak hold or normal mode, fast/slow response selection, full-capacity tare
- Units: kg, lb or N
- Selectable sampling rate from 1 to 3600 seconds with real-time clock and date stamp
- Optional USB cable and SW-U801-WIN software for live tracking on a PC (Windows XP / Vista / 7)
- Low battery indicator and auto shut-off after 10 minutes
- Measuring range: 100 kg / 220.5 lb / 980.6 N
- Accuracy: ±(5% rdg + 2 dgt.)
- Resolution: 0.15 kg / 0.02 lb / 0.02 N
- Response time: less than 1 s
- Full scale deflection: less than 1 mm
- Display: 4-digit LCD; overrange audible alarm at full capacity
- Power: 6 AA batteries or optional AC adapter; certification CE
- Operating temperature: 0 to 122°F (0 to 50°C); humidity 10 to 85%
- Dimensions: 215 x 90 x 45 mm (8.5 x 3.5 x 1.8 in); weight 1.43 lb (650 g)
- In the box: 100 kg force gauge datalogger, traceable calibration certificate with full data and uncertainties, load cell sensor with 2 hooks and cable, hard carrying case, batteries
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
