SDT FLEX2 Flexible Airborne Sensor (FS.FLX2.R16.001-01) for ultrasound detectors, 38.4 to 40.4 kHz, Ø0.63" (Ø16 mm) tip

SDT

SDT FLEX2 Flexible Airborne Sensor (FS.FLX2.R16.001-01) for ultrasound detectors, 38.4 to 40.4 kHz, Ø0.63″ (Ø16 mm) tip

SDT FS.FLX2.R16.001-01 FLEX2 flexible airborne sensor. 38.4 to 40.4 kHz bandwidth with built-in 30 dB preamplifier.

$635.00 USD

Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.

Ask about this item How ordering works

TSA SKU
TSA_89649840

Specifications

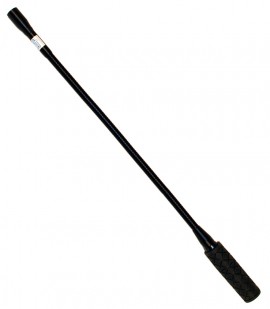

  • Airborne ultrasound sensor on a bendable metal tube, used to detect leaks from a distance or where contact sensors cannot be used
  • Applications: leak detection, electrical systems, condition monitoring
  • Removable transducer screwed onto the head; the tube can be shaped to suit the access
  • Compatible with SDT340, SDT270, SDT200 and ULTRA/TIGHT/HATCH-Checkers ultrasound detectors (detectors sold separately)
  • Useful bandwidth (-6 dB): 38.4 to 40.4 kHz
  • Center frequency: 40 kHz ±1
  • Sensitivity at 40 kHz (0 dB = 1 V/Pa): -13 dB including built-in preamplifier
  • Built-in preamplifier: 30 dB
  • Typical total beam angle (-6 dB): 55° at 25°C
  • Sensor type: removable resonance sensor, Ø0.63" (Ø16 mm)
  • Connector: Lemo 7-pin female
  • Operating temperature: -22 to 158°F (-30 to 70°C), non-condensing; IP40
  • Housing: POM (Delrin®) head, stainless and spiral steel flexible section, anodized aluminium handle
  • Dimensions: 21.8 x Ø1.4" (545 x Ø36 mm); weight 11.8 oz (336 g)
  • Certifications: EMC, RoHS

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
