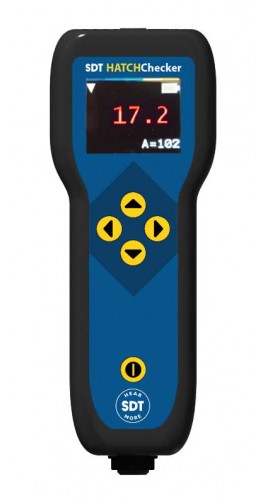

SDT HATCHecker ultrasound detector with flexible airborne sensor and T-Sonic9 transmitter, -6 to 99.9 dBμV

Specifications

• Handheld ultrasound detector kit for testing hatch cover tightness and the weathertightness of vessels, pinpointing the location of leaks
• Supplied with the T-Sonic9 transmitter and a flexible sensor; built for harsh marine environments
• Remote-controlled transmitter suitable for testing any hold or space
• Dual measure mode: switch between static and live streaming with one button
• Color OLED display with five function keys
• Detector range: -6 to 99.9 dBμV (0 dB = 1 μV); resolution 0.1; bandwidth 39.6 to 40.1 kHz
• Signal amplification: +30 dB built-in sensor gain up to +102 dB in 6 dB steps
• Display: 160 x 128 pixel color OLED; IP42; ABS housing
• Detector power: AA battery, about 7 hours; USB Mini-B connector
• Detector dimensions 6.22 x 2.32 x 1.51" (158 x 59 x 38.5 mm); weight 5.78 oz (164 g)
• Transmitter: 39.6 and 40.1 kHz, Bluetooth range 65' (20 m), six output levels from 86 to 117 dB SPL at 100 cm
• Transmitter power: AA batteries or 5 VDC USB supply; 24 hours at level 1 down to 5:30 hours at level 6
• FlexID2 sensor: Ø0.39" (10 mm) removable resonance sensor, 40.0 ±1.0 kHz, Lemo 7-pole connector
• Standards: EN 61326-1:2013, EN 55011:2016 + A1:2017, EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + IS1:2009 + A2:2010
• In the box: ultrasound detector, flexible airborne sensor, sensor cable, extension pole, ultrasound transmitter, magnetic rubber holster, remote, shoulder strap, USB cable, headphones, neckband, screwdriver, carrying case, 8 x AA batteries

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
