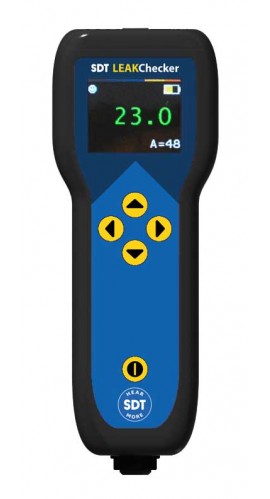

SDT LEAKChecker ultrasound detector with rubber tip, 10 to 99.9 dBμV
SDT LEAKChecker ultrasound detector. Finds compressed air and vacuum leaks, with headset and color display.
$2,795.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Handheld ultrasound detector for finding compressed air and vacuum leaks in noisy environments
- Supplied with a headset; color display and simple switch-on operation
- Measurement range: 10 to 99.9 dBμV (0 dB = 1 μV); resolution 0.1
- Bandwidth: 35 to 42 kHz
- Signal amplification: +30 dB built-in sensor gain up to +102 dB in 6 dB steps
- RMS period time 250 ms; sampling frequency 64 kHz
- Audio: operable with the SDT headset only; maximum output 83 dB SPL; headset 25 dB NRR
- Display: 160 x 128 pixel color OLED; 5 function keys
- Flexible rod length (removable sensor): 17.51" (445 mm)
- ABS housing; IP42; operating temperature 14 to 122°F (-10 to 50°C)
- Power: AA battery, about 7 hours; USB Mini-B connector
- EMC: EN 61326-1:2013, EN 55011:2016 + A1:2017, EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + IS1:2009 + A2:2010
- Dimensions 6.22 x 2.32 x 1.51" (158 x 59 x 38.5 mm); weight 12.35 oz (350 g)
- In the box: ultrasound detector, headphones, USB cable, neckband, rubber tip, screwdriver, carrying case, 2 x AA batteries
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
