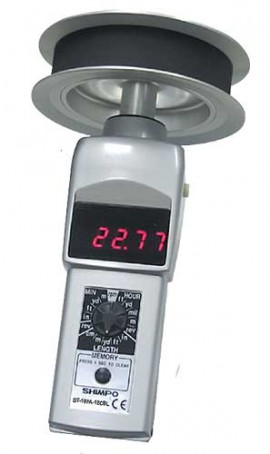

SHIMPO DT-107A-12CBL contact tachometer with 12″ circumference cable wheel

Specifications

• Contact tachometer for speed and length measurement using the 12" circumference wheel
• Suited to elevator governor cables, wire and cable reels and extruded tubing
• Die-cast aluminum housing; rear threaded inserts allow mounting to a stand or other device
• Selectable units for instantaneous rate and totalized length
• Memory stores last, max and min values plus 10 extra readings
• Battery life of 25 to 40 hours of continuous use
• LED display
• Display range: 0.10 to 25,000 RPM with floating decimal
• Accuracy: ±0.06 rpm (0.10 to 999.9 rpm); ±0.6 rpm (1000.0 to 9999.9 rpm); ±0.006% of reading ±1 digit (±2 rpm max.) at 25,000 rpm
• Display: 5-digit, 0.4" (10 mm) LED; update time 1 second (typical); flashing numerals indicate over-range
• Measuring units: RPH, RPM, FPH, FPM, MPH, YPH, YPM, IPM, mPH, mPM; length in m, cm, inches, feet, yards; total revolutions (REV)
• Memory: 13 readings (last, max, min and 10 extra) retained for 5 minutes
• Detection: optical coupler, 60 pulses/rev.
• Power: 2 x AA 1.5 V batteries (approx. 40 hrs)
• Operating temperature: 32 to 113°F (0 to 45°C)
• Dimensions: 7.2 x 2.4 x 1.8" (182.5 x 60 x 46 mm); weight 0.9 lb (400 g); CE
• In the box: tachometer, traceable certificate with full data and uncertainties, 2 cone adapters, funnel adapter, 3½" extension shaft, master wheel, carrying case

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
