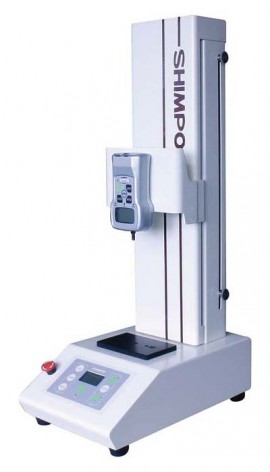

Shimpo FGS-100EH high speed vertical motorized test stand, 110 lb (50 kg)
Shimpo FGS-100EH high speed vertical motorized test stand. 110 lb (50 kg) capacity at 20-600 mm/min (0.78 to 23.60 in/min).
$2,745.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Vertical motorized force test stand for use with force gauges
- Four operation modes: manual, jog, single cycle and continuous
- Simple 7-button keypad with emergency stop
- Compatible with force gauges from most manufacturers
- Speed units selectable between in/min and mm/min; 100 to 230 V AC power input without a transformer
- Quick-adjust manual upper and lower limits; compact modular design
- Capacity: 112.4 lbf (500 N, 50 kgf)
- Movement speed: 20-600 mm/min (0.78 to 23.60 in/min)
- Speed accuracy: ±5%
- Stroke: 15.75 in (400 mm)
- Display: 3-digit LCD showing movement speed and operation mode
- Overload input: stops on FGV overload signal
- Operating temperature: 32 to 113°F (0 to 45°C), no condensation
- Dimensions: product 3.66 x 5.91 in (93 x 150 mm); table 3.66 x 5.91 in (93 x 150 mm); weight 40.1 lbs (20 kg)
- In the box: test stand, FGV overload set point communication cable
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
