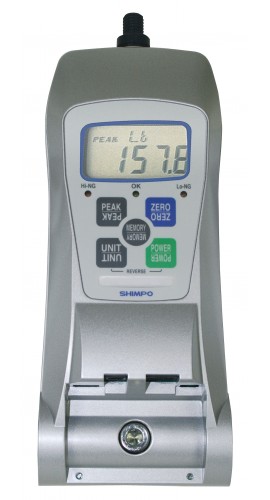

Shimpo FGV-500HXY high capacity digital force gauge, 500 lbs

Specifications

• Heavy-duty digital force gauge for high capacity tension and compression applications, including push-pull testing
• 180° reversible display with adjustable force direction and dual labeled keypad; usable handheld or on a test stand
• Included handle attachments help with testing heavy loads
• Onboard statistics; expanded memory for reviewing data points and transferring to a PC; selectable average/peak mode
• Three outputs: USB, RS-232 and analog; built-in Hi-Lo comparator for go/no-go testing
• One-button selection of engineering units; variable display response rate; field calibration through the keypad
• 1 million operation load cell with overload protection; die cast aluminum housing; CE mark and RoHS approval
• Applications: incoming quality inspection, finished goods testing, R&D
• Capacity: 500 lbs / 250 kg / 2500 N
• Resolution: 0.1 lb / 0.1 kg / 1 N
• Accuracy: ±0.2% F.S.
• Sampling rate: 1000 Hz
• Overload: 150% of F.S.
• Display: four-digit LCD, 0.47 in (12 mm) high, reversible, minus sign for tension; update 0.05, 0.1, 0.2, 0.3, 0.5 or 1 s
• Power: rechargeable Ni-Cad battery or AC adapter/charger; 17 hours when fully charged; auto power shut-off (inactive on adapter)
• Operating temperature: 32 to 104°F (0 to 40°C)
• Dimensions: 8.43 x 3.23 x 2.25 in (214 x 82 x 57 mm); weight approx. 2 lbs (900 g)
• In the box: force gauge, 2 handles, metric thread to inch adapter, hook, chisel, flat head, notched head, hanger, cone head, extension rod, USB cable, carrying case, AC adapter/charger

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
