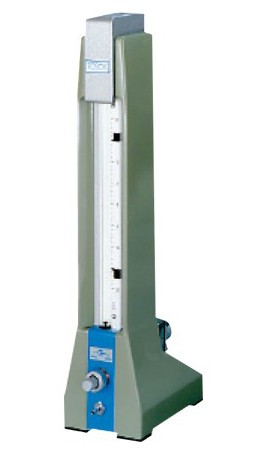

SHIMPO FT5001 Air Gauge, Single Column with Ball Float, 10,000 Magnification Scale

Specifications

• Series FT-5000 column-type air gauge, a precision non-contact measuring instrument when combined with a customized air probe sensor
• Air flow and back pressure between the part and the sensing probe indicate dimensions without damaging the test part
• Suited to fast measurement of inside and outside diameters on manufacturing floors and in laboratories
• Up to 6 units can be stacked or daisy-chained to take several readings on the same part at once
• Air adjustment knobs, used with the max/min masters and air probe sensor, set zero and full scale
• Sensitivity adjustment knob for fine tuning of air control
• Adjustable high/low limit flag indicators show part acceptability
• Free of hysteresis error; high pressure air from the sensor clears oil and dust from the test piece
• Light, slim frame for placement on any bench
• Standard magnification: 10,000
• Measuring range: 20 µm
• Effective indication range: 15 µm
• Scale graduation: 0.5 µm
• Input: 1 air channel per column
• Repeatability: max 0.3 µm
• Response time: max 2.0 sec
• Air supply pressure: 28.4 psi (196 kPa)
• Source pressure: 42.7 to 99 psi (294 to 686 kPa)

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
