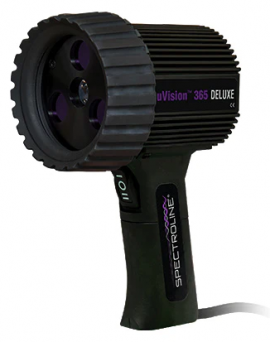

Spectro-UV UV-365SBLC uVision 365 Deluxe Series LED UV-A blacklight lamp kit, <5000 µW/cm², <11 lux

Specifications

• LED UV-A inspection lamp kit for fluorescent inspection in indoor and outdoor environments; used for NDT, NDE, forensics, security inspections and aerospace
• Fully compliant with ASTM E3022-18 and Rolls-Royce 90061; meets EN ISO 3059; IP65 rated
• Fanless heat-sink design; thermal cut-off circuitry prevents the lamp going out of compliance if internal temperature exceeds specification
• Three UV-A LEDs; faceplate with integral UV-A pass filters; long-lasting UV-A lenses reduce solarization
• White light LED (not adjustable) for scanning surface flaws; grip-mounted three-way rocker switch (white light/off/UV)
• Power/battery life light indicates power level; pistol grip
• Nominal steady-state UV-A (365 nm) intensity at 15" (38 cm): < 5000 µW/cm²
• UV-A coverage at 15" (38 cm), minimum 1200 µW/cm²: 6" (15 cm) diameter
• Visible light: < 1 foot-candle (11 lux); white LED intensity 400 foot-candles (4306 lux)
• Power 100 to 120 V AC / 12 V DC; battery 12 V NiMH rechargeable, 3.5 hours continuous run, 2 hours charge
• Dimensions 7.5 x 3.5" (19 x 8.9 cm); lamp head diameter 3.5" (9 cm); weight 1.9 lbs (0.9 kg)
• In the box: LED UV-A lamp, certificate of conformance, validation report, in-line AC power supply, UV-absorbing spectacles, protective carrying case

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
