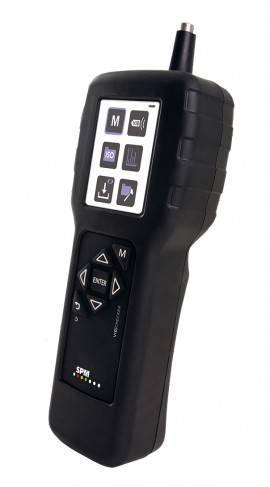

SPM VC200T Set VibChecker Set with built-in probe, 10 to 1000 Hz
SPM VC200T Set VibChecker. Built-in probe and external transducer for RMS vibration measurement.
$2,222.04 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Vibration checker with built-in probe and external transducer for measuring RMS vibration on pumps, gearboxes, fans and similar machines
- Measures velocity, displacement and acceleration, plus vibration severity according to ISO 2372/10816
- Results shown in green, yellow and red severity levels; usable without specialized training
- Stores results for trending and follow-up; transfer to file for further processing
- Color screen with graphical user interface, push-button operation, lightweight, USB battery charging
- Applications: imbalance, misalignment, looseness, gear mesh, motors, fans, pumps, compressors
- Measuring range: velocity RMS 100 mm/s (4 ips) at 80 Hz; acceleration RMS 100 m/s² (10 g) at 10 to 1000 Hz; displacement RMS 10 um (4 mil) at 80 Hz
- Readings: RMS/peak/peak-to-peak
- Condition evaluation: ISO 2372 and ISO 10816 parts 2, 3, 4
- Spectrum: linear, 200/400/800 lines, hanning window, Hz/cpm, zoom, RPM markers
- Time signal: 512/1024/2048 samples, zoom, marker
- Display: 2.4 in (60.96 mm) color TFT LCD; protection class IP65
- Dimensions: 8.1 x 2.9 x 1.6 in (207 x 74 x 41 mm)
- Weight: 11.8 oz (335 g)
- In the box: VibChecker, external transducer, charging cable, carrying case
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
