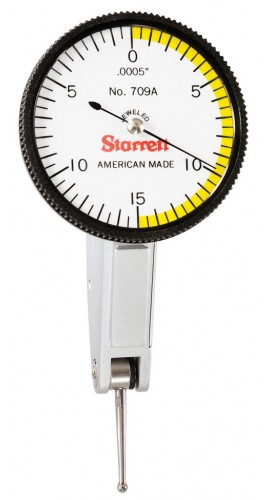

Starrett 709AZ Dial Test Indicator with dovetail mount, 0.03″ range, 0 to 15 to 0 reading
Starrett 709AZ dial test indicator with dovetail mount. 0.03" range with 0.0005" graduations.
$501.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Dial test indicator for precise measurements, with an angled head for reading from a variety of positions
- Dovetail positioning mounts for simple installation
- 3 dovetail positioning mounts compatible with existing test indicator accessories (sold separately)
- Precision gear-driven design with smooth, jeweled movement
- Automatic reversing contact point keeps clockwise hand rotation
- Frictionally adjustable, replaceable contacts; revolution count hand; narrow body
- Satin chrome finish
- Measurement range: 0.03"
- Accuracy: 0.0005" graduations
- Dial reading: 0 to 15 to 0
- Contact point length: 0.81" (20 mm); dial diameter 1.38" (35 mm)
- Graduations: inches; dial color white; non-powered
- Approvals: ISO
- Made in USA
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
