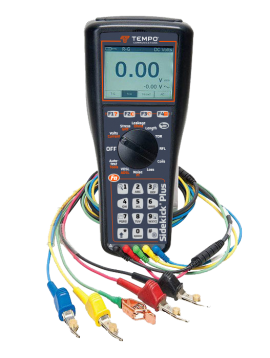

Tempo 1155-5009 Sidekick Plus wideband copper and DSL test set

Specifications

• Wideband version of the Sidekick Plus for diagnosing and troubleshooting twisted pair cable and for installing, qualifying and maintaining DSL services
• Combines copper qualification with DSL sync and service testing in one test set, with no modules needed
• Mode selection dial for simple operation
• Advanced dual trace pulse TDR (zero dead zone); resistive fault locator detecting up to 20 MΩ
• 1 GΩ leakage (insulation resistance) test; longitudinal balance, ground resistance, quiet line noise (QLN) and stress tests
• AC/DC voltage, resistance, open meter, loop current, circuit loss; tracing tone generator and reference tone
• Stress test: 0 to 82 dBrnC
• AC voltage 250V; DC voltage 300V
• Resistance: 100 Mohm; leakage 999 Mohm
• Open meter: up to 18.6 miles (30 km); load coil 0 to 5
• Loop current: 110 mA; circuit loss -70 to 3 dBm; circuit noise 0 to 90 dBrnC
• Tracing tone generator: 200 Hz to 20 kHz; reference tone output level 3 to -20 dBm
• Auto test with pass/fail: 400 results
• Display: 320 x 240, sunlight readable
• Battery: Li-Ion, 8 hours
• Weight: 3 lbs (1.4 kg)

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
