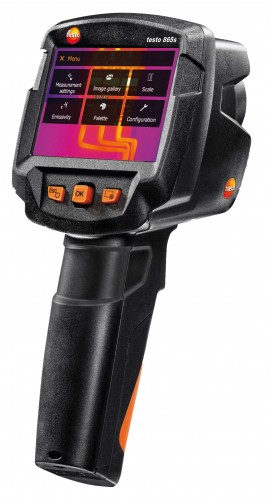

Testo 865s thermal imager, 160 x 120 pixels (320 x 240 SuperResolution), 100 mK

Specifications

• Entry-level thermal imager for detecting leaks, overheated connections, thermal bridges and structural defects in trade and industry
• Also used for HVAC/R checks such as radiator sludge inspection, supply and return temperatures and tracing underfloor heating loops and pipe leaks
• IFOV warner shows the measurement spot size on the thermal image; ScaleAssist gives comparable images in building thermography
• Automatic hot and cold spot detection; thermal images saved as JPEG; PC software for evaluation
• Infrared resolution 160 x 120 pixels; SuperResolution 320 x 240 pixels (2.1 mrad)
• Thermal sensitivity (NETD) <0.1°C (100 mK); IFOV 3.4 mrad; refresh rate 9 Hz; fixed focus
• Field of view 31 x 23°; minimum focus distance <0.5 m (1.6 ft); spectral range 7.5 to 14 μm
• Measurement range -20 to 280°C (-4 to 536°F); accuracy ±2°C (±3.6°F) or ±2% of measured value, whichever is greater
• Display 3.5" TFT QVGA; palettes: iron, rainbow HC, cold-hot, gray
• Internal memory 2.8 GB; USB video streaming; Windows 8.1 and 10
• Field-replaceable Li-ion battery, 4 hours operation, charged in the device
• IP54; operating temperature -15 to 50°C (5 to 122°F)
• Dimensions 219 x 96 x 95 mm (8.6 x 3.8 x 3.7 in); weight 510 g (1.12 lbs)
• In the box: thermal camera, certificate of conformity, USB cable, carrying case, power supply, Li-ion battery, quick start guide, professional software

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
