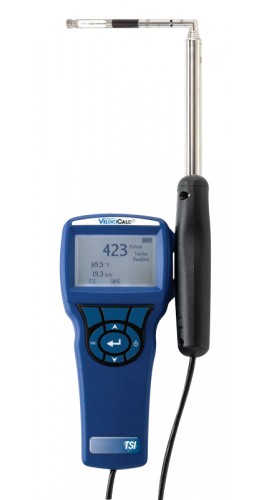

TSI Alnor 9545-A VelociCalc Air Velocity Meter with Humidity and Articulated Probe

Specifications

• Air velocity meter that measures and logs velocity, temperature and relative humidity with one multi-sensor articulated probe; calculates volumetric flow, wet bulb and dew point
• Displays up to three measurements at once; calculates volumetric flow and actual/standard velocity
• Applications: optimizing HVAC/R system performance, commissioning, plant maintenance, critical environment certification, duct traverses
• Velocity: 0 to 6000 ft/min (0 to 30 m/s), accuracy ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater, resolution 1 ft/min (0.01 m/s)
• Temperature: 14 to 140°F (-10 to 60°C), accuracy ±0.5°F (±0.3°C), resolution 0.1°F
• Relative humidity: 5 to 95% RH, accuracy ±3% RH, resolution 0.1% RH
• Duct size input: 1 to 250 in in 0.1 in increments (1 to 635 cm)
• Data storage: 12,700+ samples and 100 test IDs; logging interval 1 second to 1 hour; time constant user selectable
• Power: 4 x AA batteries or AC adapter; meter 3.3 x 7 x 1.8 in (8.4 x 17.8 x 4.4 cm), 0.6 lb (0.27 kg) with batteries; articulating probe 7.8 in (19.7 cm) long
• In the box: air velocity meter, calibration certificate, articulated probe, 4 x alkaline batteries, USB cable and LogDat2 downloading software, operation and service manual

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
