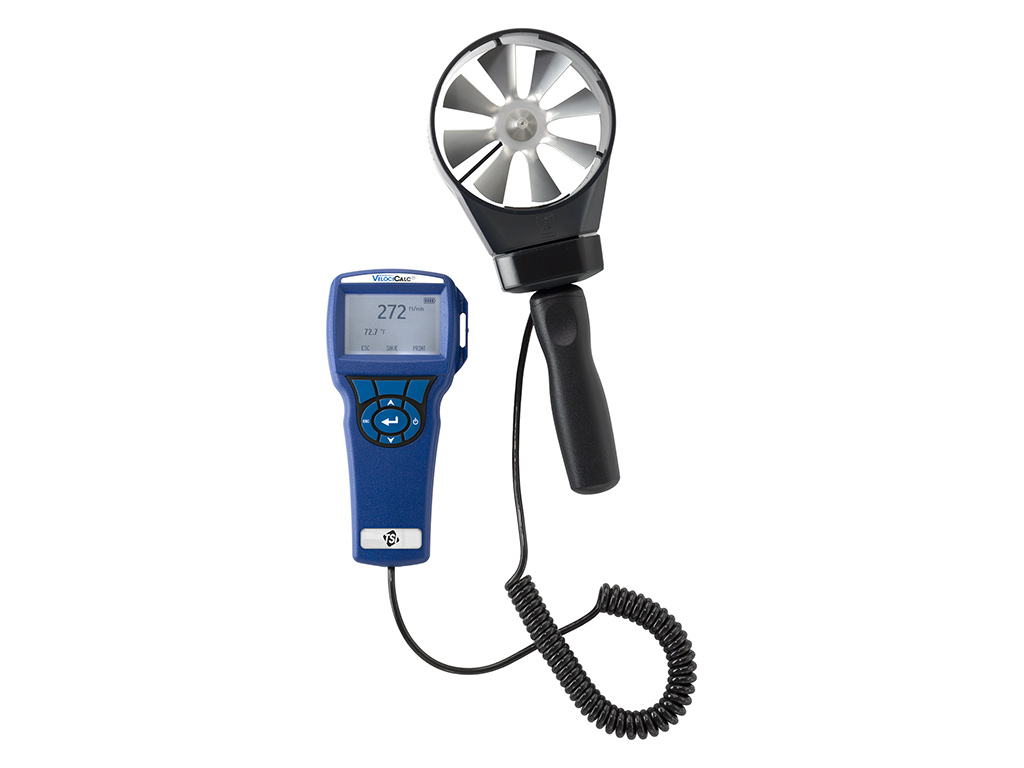

TSI Alnor VelociCalc 5725 Rotating Vane Thermo-Anemometer

Specifications

• Rotating vane thermo-anemometer measuring air velocity and temperature, calculating volumetric flow rate, averaging, and recording min/max readings
• Reversible 4 in (100 mm) head for supply and exhaust flows; optional 36 in telescopic probe; compatible with optional Aircone flow hoods
• Flow rate calculated from user-entered duct shape and size or area; sampling function for multiple point measurements; sweep mode for one overall measurement; automatic averaging
• Logs 12,700+ samples with time and date stamp; recall, review and store data
• Applications: heating and cooling coil analysis, diffuser and grille measurements, fume hood face velocity tests, indoor air quality tests, filter face velocity measurements
• Velocity: 0.25 to 30 m/s (50 to 6000 fpm), accuracy ±1% of reading or ±0.02 m/s (±4 fpm)
• Temperature: 0 to 60°C (32 to 140°F), accuracy ±0.5°C (±2°F)
• Duct size range: 0 to 16 m2 (0 to 173.6 ft2); data storage 12,700 samples and 100 test IDs; logging interval 1 second to 1 hour
• Power: 4 x AA batteries; dimensions 3.3 x 7.0 x 1.8 in (84 x 178 x 44 mm); weight 0.6 lb (0.27 kg)
• In the box: 5725 thermo-anemometer, carrying case, alkaline batteries, operation and service manual, USB cable with LogDat2 downloading software, calibration certificate

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
