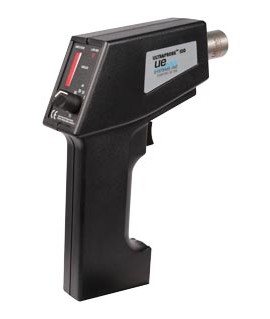

UE Systems UP100SC stethoscope/scanner leak detection kit
UE Systems UP100SC UltraProbe 100 stethoscope/scanner kit. Heterodyne receiver, 20 to 100 kHz, with scanning and contact modules.
$1,297.35 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Ultrasonic detection kit for leak detection, steam trap inspection and mechanical troubleshooting; ultrasound is directional and localized and works in noisy environments
- Applications: pressure and vacuum leaks, valve seats, exhaust systems, heat exchangers/boilers/condensers, steam traps, bearings, gears and gearboxes, tank and pipe leak testing, electrical inspection
- Heterodyne ultrasonic receiver: SMD/solid-state hybrid circuitry; frequency response 20 to 100 kHz (centered at 38 to 42 kHz)
- 8-position sensitivity dial with decibel indications; 10-segment red LED bar graph, each LED approx. 3 dB; response time 300 ms
- Probes: stainless steel scanning module (SCM-1), stethoscope/contact module (STM-1) with 5.5" stainless steel waveguide, rubber focusing probe (as supplied per kit)
- Headset: noise-isolating, 16 Ω, over 23 dB noise attenuation; meets ANSI specifications and OSHA standards
- Transmitter: patented warble tone
- Power: 9 V alkaline battery; dimensions 5.25 x 2 x 8" (133 x 50 x 203 mm); weight 11 oz (0.3 kg)
- In the box: UltraProbe 100, scanning module, rubber focusing probe, stethoscope module, noise-attenuating headphones, 9 V alkaline battery, plastic carrying case, instruction manual
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
