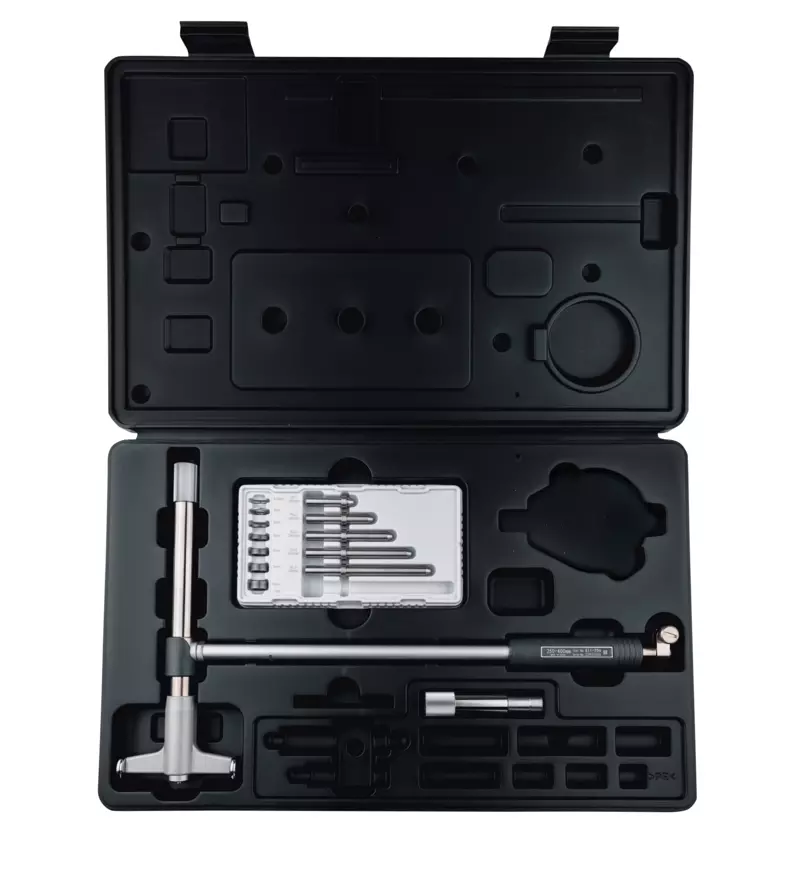

Mitutoyo 511-706 standard bore gauge, 250 to 400 mm, 2-point
Mitutoyo 511-706 standard bore gauge. Two-point gauge for 250 to 400 mm bores, supplied without indicator.
$668.04 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Standard-type two-point bore gauge without indicator for close-tolerance inside diameter measurements
- Interchangeable anvils and optional accessories; carbide-tipped points
- Measuring range: 250 to 400 mm
- Accuracy: 2 µm
- Indication stability: 1 µm
- Number of anvils: 5 (75 mm sub anvil)
- Number of spacers: 7
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
