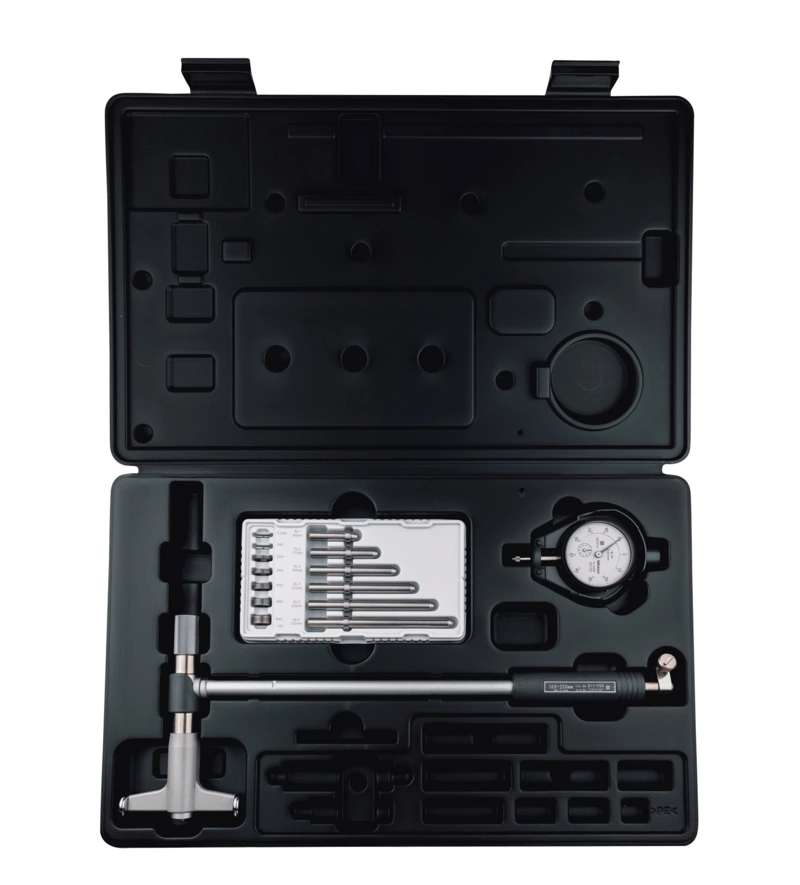

Mitutoyo 511-715-20 standard bore gauge, 160 to 250 mm, 0.01 mm
Mitutoyo 511-715-20 standard bore gauge. Two-point gauge for 160 to 250 mm bores with 0.01 mm graduation.
$602.88 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Standard-type two-point bore gauge with 0.01 mm dial for close-tolerance inside diameter measurements
- Interchangeable anvils and optional accessories; carbide-tipped points and dial gauge protector
- Measuring range: 160 to 250 mm
- Graduation: 0.01 mm
- Accuracy: 2 µm
- Indication stability: 1 µm
- Number of anvils: 6
- Number of spacers: 7
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
