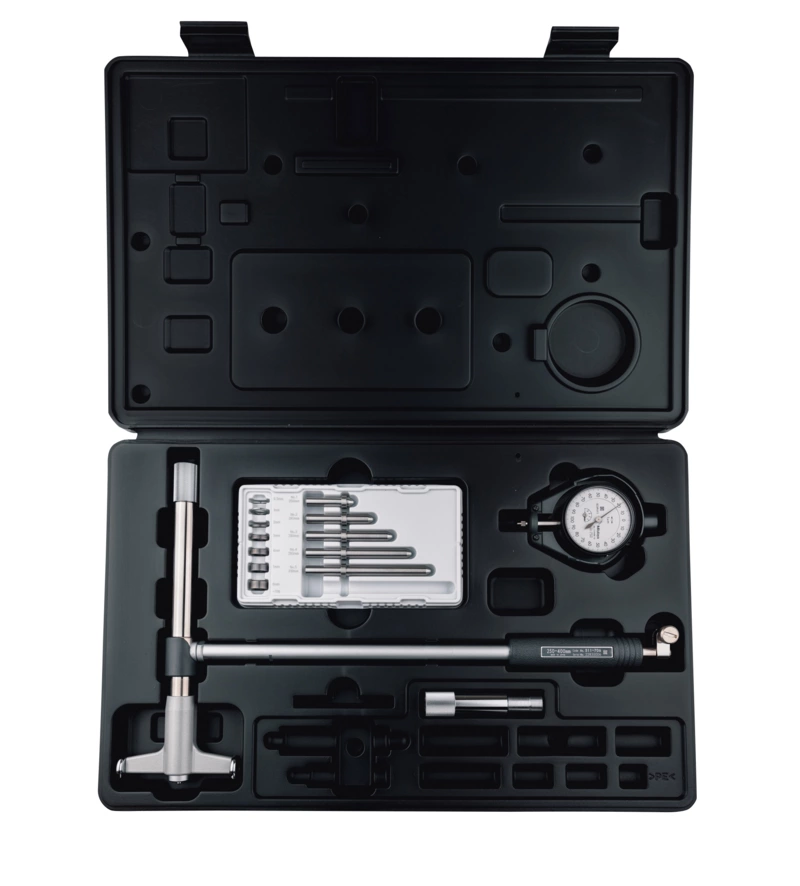

Mitutoyo 511-726-20 standard bore gauge, 250 to 400 mm, 0.001 mm
Mitutoyo 511-726-20 standard bore gauge. Two-point gauge for 250 to 400 mm bores with 0.001 mm graduation.
$792.85 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Standard-type two-point bore gauge with 0.001 mm dial for close-tolerance inside diameter measurements
- Interchangeable anvils and optional accessories; carbide-tipped points and dial gauge protector
- Measuring range: 250 to 400 mm
- Graduation: 0.001 mm
- Accuracy: 2 µm
- Indication stability: 1 µm
- Number of anvils: 5 (75 mm sub anvil)
- Number of spacers: 7
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
