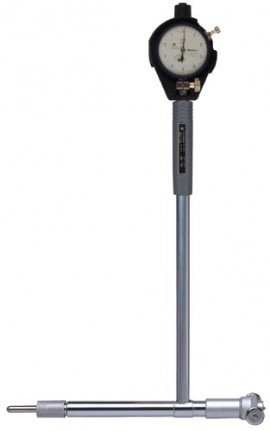

Mitutoyo 511-756-20 mechanical dial bore gauge, standard, 2-point, 10-16 in
Mitutoyo 511-756-20 standard dial bore gauge. Range 10-16 in with 2923SB-10 indicator, .0001" graduation.
$792.85 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Series 511 standard-type two-point bore gauge with 2923SB-10 dial indicator
- Carbide-tipped contact points; dial indicator protected by a rugged cover
- Optional extension rods can be attached for measuring deep holes
- Applications: mechanical engineering, metrology, machining
- Range: 10-16 in
- Graduation: .0001" with 2923SB-10
- Accuracy: 2 µm/.00008"
- Indication stability: 1 µm/.00004"
- In the box: bore gauge, dial indicator, 6 anvils, 7 spacers
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
