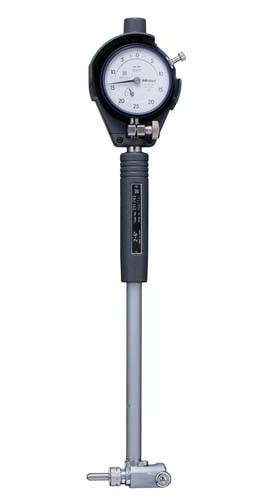

Mitutoyo 511-932-20 mechanical dial bore gauge, standard, 3-piece set, 2-point, 0.7-6 in
Mitutoyo 511-932-20 standard dial bore gauge set. Three-piece two-point set covering .7 – 6 in with .0001" graduation.
$1,051.90 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Series 511 standard-type bore gauge set with 2923SB-10 dial indicator
- Interchangeable anvils and accessories for close-tolerance inside diameter measurements
- Carbide-tipped contact points; dial indicator protected by a rugged cover
- Optional extension rods can be attached for measuring deep holes
- Applications: mechanical engineering, metrology, machining
- Range: .7 – 6 in
- Graduation: .0001" with 2923SB-10
- Accuracy: 2 µm/.00008"
- Indication stability: 1 µm/.00004"
- In the box: bore gauge, dial indicator, 26 anvils / 2" sub anvil, 10 spacers
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
