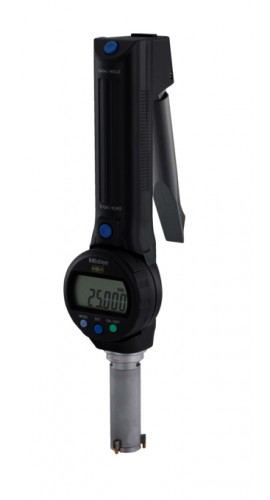

Mitutoyo 568-368-10 Digital ABS Borematic, 30 to 40 mm
Mitutoyo 568-368-10 digital ABS Borematic. Range 30 to 40 mm.
$1,639.30 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Digital ABS Borematic for bore diameter measurement over 30 to 40 mm
- TiN-coated measuring contact points for durability and impact resistance; can measure to the bottom of a blind hole
- 330-degree rotatable display unit for reading at any angle
- GO/NG tolerance judgement function
- Large LCD digits of 8.5 mm height
- ABSOLUTE linear encoder eliminates over-speed errors
- SPC data output
- Optional setting rings for origin point setting and optional extension rod for deep holes
- Supplied in fitted wooden case
- Range: 30 to 40 mm
- Accuracy: ±6 µm
- Mass: 565 g
- Resolution: 0.001 mm or 0.00005"/0.001 mm
- Measuring method: three-point method
- Display: LCD
- Battery: SR44 (1 pc.)
- Battery life: Approx. 7,000 hours
- Units: Metric
- In the box: Digital ABS Borematic, Battery, Key, Box, Certificate of Inspection
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
