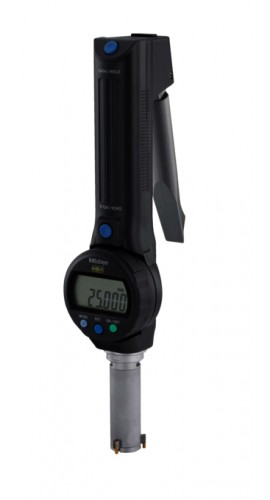

Mitutoyo 568-464-10 Digital ABS Borematic, 0.50 to 0.65" / 12.7 to 16.51 mm

Mitutoyo

Mitutoyo 568-464-10 Digital ABS Borematic, 0.50 to 0.65″ / 12.7 to 16.51 mm

Mitutoyo 568-464-10 digital ABS Borematic. Range 0.50 to 0.65" / 12.7 to 16.51 mm.

$1,580.15 USD

Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.

Ask about this item How ordering works

TSA SKU
TSA_65114772
Category
Bore Gauges

Specifications

  • Digital ABS Borematic for bore diameter measurement over 0.50 to 0.65" / 12.7 to 16.51 mm
  • TiN-coated measuring contact points for durability and impact resistance; can measure to the bottom of a blind hole
  • 330-degree rotatable display unit for reading at any angle
  • GO/NG tolerance judgement function
  • Large LCD digits of 8.5 mm height
  • ABSOLUTE linear encoder eliminates over-speed errors
  • SPC data output
  • Optional setting rings for origin point setting and optional extension rod for deep holes
  • Supplied in fitted wooden case
  • Range: 0.50 to 0.65" / 12.7 to 16.51 mm
  • Accuracy: ±0.00025"
  • Mass: 475 g
  • Resolution: 0.001 mm or 0.00005"/0.001 mm
  • Measuring method: three-point method
  • Display: LCD
  • Battery: SR44 (1 pc.)
  • Battery life: Approx. 7,000 hours
  • Units: Inch/Metric
  • In the box: Digital ABS Borematic, Battery, Key, Box, Certificate of Inspection

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
