Mitutoyo 568-957-10 Borematic Snap Open Bore Gauge 25 to 50mm

Mitutoyo

Mitutoyo 568-957-10 Borematic Snap Open Bore Gauge 25 to 50mm

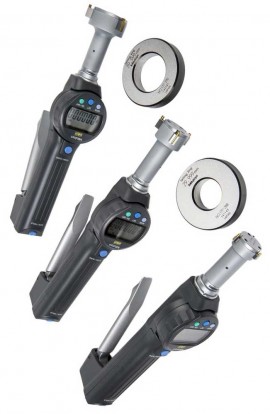

Mitutoyo 568-957-10 Borematic snap-open bore gauge. Complete unit set for 25 to 50 mm.

$5,289.70 USD

Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.

Ask about this item How ordering works

TSA SKU
TSA_74076460
Category
Bore Gauges

Specifications

  • Borematic snap-open bore gauge using three-point measurement of bore diameters
  • Complete unit set for 25 to 50 mm, comprising bore gauge units with setting rings 177-139 and 177-290
  • Once the origin point is set with the ORIGIN button, the setting is retained for the entire battery life
  • TiN-coated measuring contact points for durability and impact resistance; can measure to the bottom of a blind hole
  • Large LCD digits of 8.5 mm height
  • 330-degree rotatable display unit
  • GO/NO-GO judgment function
  • ABSOLUTE linear encoder eliminates over-speed errors
  • SPC data output
  • Optional extension rod for deep holes
  • Supplied in fitted wooden case

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
