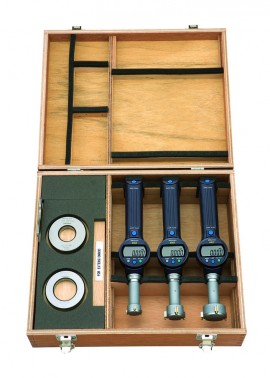

Mitutoyo 568-967-10 Digital ABS Borematic Complete Unit Set, 1 to 2″ / 25.4 to 50.8 mm

Specifications

• Digital ABS Borematic complete unit set for bore diameter measurement over 1 to 2" / 25.4 to 50.8 mm
• TiN-coated measuring contact points for durability and impact resistance; can measure to the bottom of a blind hole
• 330-degree rotatable display unit for reading at any angle
• GO/NG tolerance judgement function
• Large LCD digits of 8.5 mm height
• ABSOLUTE linear encoder eliminates over-speed errors
• SPC data output
• Optional setting rings for origin point setting and optional extension rod for deep holes
• Supplied in fitted wooden case
• Range: 1 to 2" / 25.4 to 50.8 mm
• Accuracy: ±0.0003"(excluding quantizing error)
• Mass: 1750 g
• Resolution: 0.001 mm or 0.00005"/0.001 mm
• Measuring method: three-point method
• Display: LCD
• Battery: SR44 (1 pc.)
• Battery life: Approx. 5,000 hours
• Units: Inch/Metric
• In the box: Display Unit, Borematic Head Assembly, 1 to 1.2", Borematic Head Assembly, 1.2 to 1.6", Borematic Head Assembly, 1.6 to 2", Setting Ring, 1.2", Setting Ring, 1.6", Battery, Key, Box, Certificate of Inspection

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
