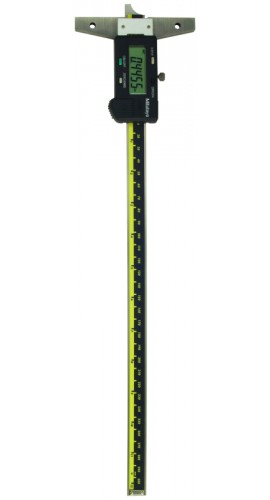

Mitutoyo 571-213-30 Absolute Digimatic Depth Gauge, 0 to 12" (0 to 300 mm), SPC output

Mitutoyo

Mitutoyo 571-213-30 Absolute Digimatic Depth Gauge, 0 to 12″ (0 to 300 mm), SPC output

Mitutoyo 571-213-30 Absolute Digimatic depth gauge. Range 0-12" (0-300 mm), resolution 0.0005".

$550.94 USD

Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.

Ask about this item How ordering works

TSA SKU
TSA_48367773
Category
Depth Gauges

Specifications

  • Absolute Digimatic depth gauge with a measuring range of 0-12" (300 mm) and 0.0005" (0.01 mm) resolution
  • Absolute encoder retains all settings and readings for the life of the battery, even when switched off
  • Hardened and micro-lapped base and measuring faces
  • SPC data output
  • Battery life of 20,000 hours under normal conditions
  • Slider lock screw
  • Range: 0-12" (0-300 mm)
  • Resolution: 0.0005" (0.01 mm)
  • Accuracy: ±0.0015"
  • Mass: 312 g
  • Display: LCD
  • Repeatability: 0.01 mm
  • Measuring force: 1.4 N, 1.5 N
  • Length standard: ABSOLUTE electrostatic capacitance linear encoder
  • Maximum response speed: unlimited
  • Battery: SR44
  • In the box: Absolute Depth Gauge, Battery, Fitted Case

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
